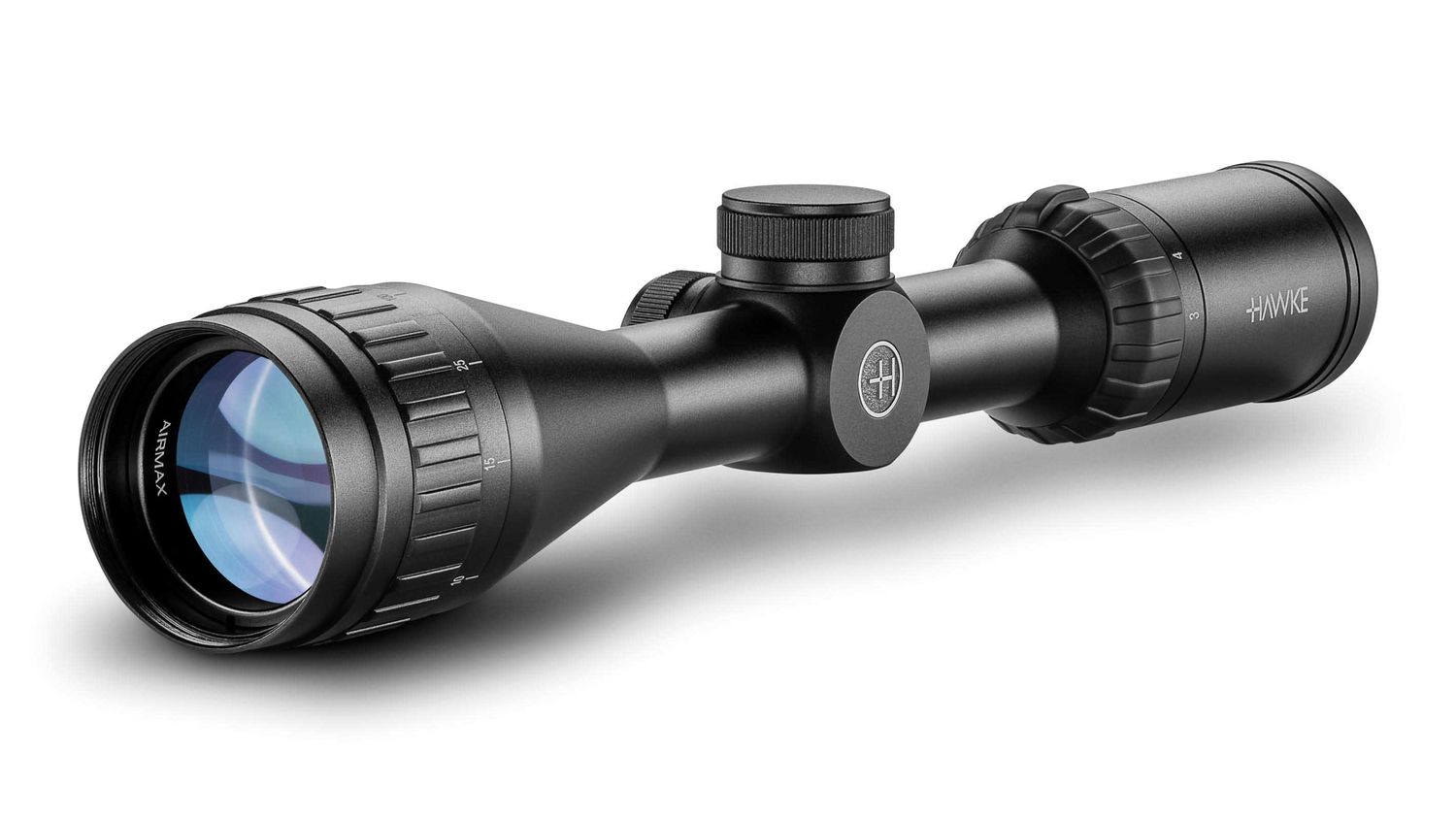

Specialist scopes designed by airgunners for airgunners!
Airmax scopes feature our H2 optics in a variety of configurations designed to suit airgun characteristics.
- Capped Low-Profile Turrets
- 1 Inch Mono-tube chassis
- Wide Angle
- 16 layer Fully Multi-Coated lenses
- High torque zoom ring
- Fast focus eyebell
- AMX reticle designed for airguns
Nitrogen purged. Shockproof. Waterproof. Fog proof.
All calibre rated.
Hawke No-Fault Lifetime Warranty.
AMX Reticle
Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.
Half Mil Dot spacing on the lower post provides increased aim points for long shots.
The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.
| Objective Lens | 40mm |
| Reticle | AMX |
| Parallax | Adjustable Objective |
| Magnification | 3-9x |
| Optical System | System H2 |
| Focal Plane | Second Focal Plane |
| Scope Tube | 1" |
| Illumination | N/A |
| Field of View | 37.2-13.6ft @ 100yds/12.4-4.5m @ 100m |
| Field of View (°) | 7.1-2.6 |
| Eye Relief | 3.5"/90mm |
| PX/Focus (Error Free Form) | 10yds/9m - ∞ |
| Exit Pupil | 0.52-17"/13.3-4.4mm |
| Turret Type | Capped |
| Turret Caps | Yes |
| Click Value | 1/4 MOA |
| Elevation Turret Clicks (max) | 80 MOA |
| Windage Turret Clicks (max) | 80 MOA |
| Ocular Type | Fast Focus |
| Power Selector | Rubber Coated Posi-Grip |
| Lens Coating | Fully Multi-Coated - 16 Layers |
| Length | 12.2"/310mm |
| Weight | 18.3oz/519g |
