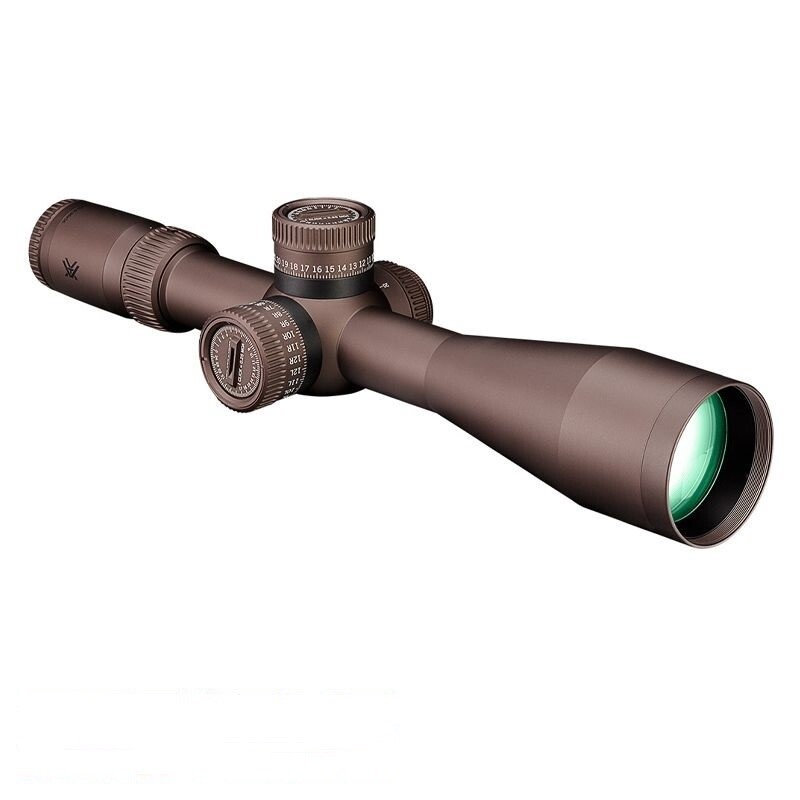

Vortex Razor HD Gen III 6–36x56 FFP EBR-7D MOA
The intensity of long-range, tactical situations can push even the best shooters to their limits. When that intensity defines your shooting experience, the Razor HD Gen III 6-36x56 FFP offers the precision tools you need to act quickly and decisively. To get the absolute most out of the First Focal Plane reticle, the EBR-7D presents a clean sight picture while still providing ample wind holds and ranging information. The L-Tec+ Zero Stop System with micro-adjust dial means a rapid return to an ultra-fast, fine-tuned zero. Round it out with a rugged build designed for the field and you have the long-range tactical solution you’ve been waiting for.
Optical Features:
- First Focal Plane Reticle - Scale of the EBR-7D reticle remains in proportion to the zoomed image. Constant subtensions allow for accurate holdovers and ranging at all magnifications while the EBR-7D reticle is useful for long-range shooting.
- Glass-Etched Reticle - Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
- L-Tec+ Zero System - The L-Tec+™ Zero System is easy to use with all captive parts and only one set screw, making zeroing quick and simple. Once set, it also allows for more travel.
- HD Optical System - Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding color fidelity, edge-to-edge sharpness and light transmission.
- XRPlus Fully Multi-Coated - Premium proprietary coatings deliver the highest level of light transmission with multiple anti-reflective coatings on all air-to-glass surfaces for maximum brightness.
- Optically Indexed Lenses - Deliver optimum image sharpness and brightness with true reticle use for full ranging and holdover from edge to edge because of computer-controlled alignment during construction.
- Plasma Tech - Cutting edge coating application process provides unparalleled coating durability and performance
Construction Features:
- ArmorTek - Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
- Shockproof - Rugged construction withstands recoil and impact.
- Waterproof IPX7 - Designed to meet IPX7 waterproofing standards.
- Fogproof - Argon gas purging prevents internal fogging over a wide range of temperatures.
- Argon Gas - Argon gas-purged and o-ring-sealed for fogproof and waterproof performance.
- Tube Size - 34 mm diameter provides maximized internal adjustment and strength.
- Hard Anodized Stealth Shadow Finish - Highly durable anodization provides a low-glare matte surface and helps camouflage the shooter's position.
- Aircraft-Grade Aluminum - Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Internal Mechanism Design Features:
- Friction Reduction System - Heat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact. US Patent 7,958,665
- Erector Tube System - Precision-machined from premium brass alloy with anti-galling properties for strength and durability. Chromium vanadium erector spring, tumble-polished.
Convenience Features:
- External Rotation Indicator - Provides quick visual and tactile reference of elevation turret's rotational position.
- Daylight Bright Illumination - Daylight bright, illuminated reticle aids in faster target acquistion in bright daylight conditions.
- Locking Side Illumination - Easily accessible and lockable illumination dial is located on the left side of turret housing. Features eleven intensity levels of illumination with off positions between each setting.
Specifications:
- Magnification: 6-36
- Objective Lens Diameter: 56 mm
- Eye Relief: 3.5 inches
- Field of View: 21.3-3.5 feet/100 yards
- Tube Size: 34 mm
- Turret Style: Exposed Locking
- Adjustment Graduation: 1/4 MOA
- Travel per Rotation: 25 MOA
- Max Elevation Adjustment: 120 MOA total
- Max Windage Adjustment: 52.2 MOA total
- Parallax Setting: 10 yards to infinity
- Length: 15.3 inches
- Weight: 45.1 ounces
- Part #: RZR-63601
Included:
- Sunshade
- Objective lens covers
- Ocular lens covers
- Lens cloth
- Battery CR2032
- Throw lever
- L-TEC Tool
Warranty:
Every Vortex product comes with a VIP Unlimited, Unconditional, Lifetime Warranty.
